In the world of Entertainment Lighting, Cabochon point lights have become increasingly popular. They are widely used for Theme park Ferris wheel, signage, and decorative installations.

However, not all Cabochon lights are the same. While many suppliers offer similar-looking products, the internal design — especially the base — can vary significantly between manufacturers.

Recently, we received an inquiry from a client requesting a customized base design for our Cabochon lights. This led us to develop two specific variations, which we'd like to share in this technical post.

The Challenge: Non-Standard Base Designs

Cabochon lights are available in many styles, especially those with colored housings. However, the base design underneath the housing often differs from one supplier to another. These differences affect:

Mounting compatibility (how the light attaches to surfaces)
Wiring access (how cables connect and route)
Sealing performance (waterproofing effectiveness)

For standard colored housing versions, there is no minimum order quantity (MOQ) — they are readily available. But for custom base designs, suppliers typically require MOQs due to tooling and production setup costs.

For this specific project, we managed to keep the MOQ at just 500 pieces — significantly lower than industry norms for custom base tooling.

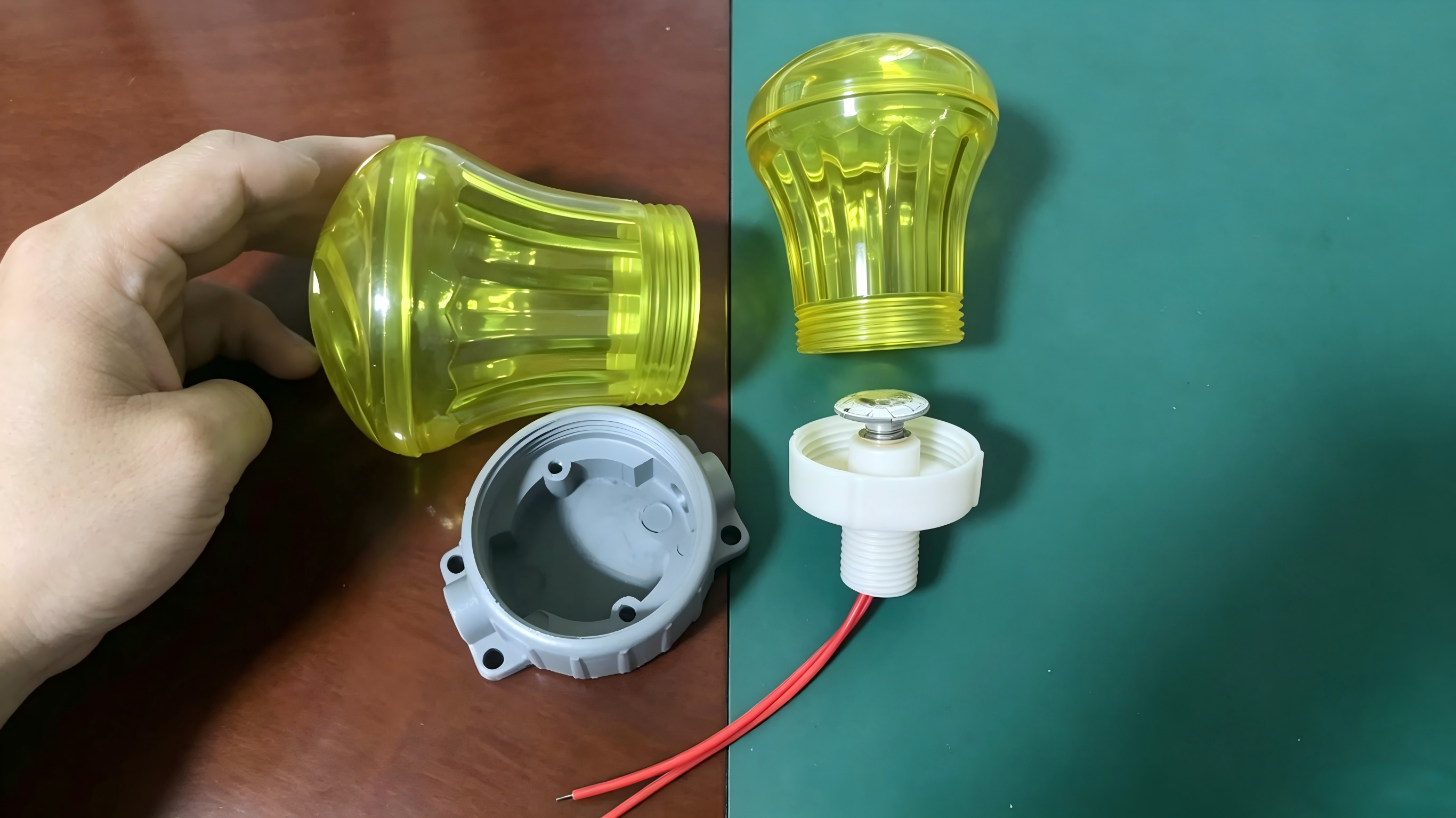

Two Custom Base Options We Developed

Based on the client's requirements, we created two Cabochon variations:

Option	Configuration	Voltage	Power	LED Layout
Option 1	Single color, E14 base	AC24V	2W per unit	16 front-facing + 4 rear-facing 2835 LEDs
Option 2	Internal control (no external controller needed)	AC24V	—	8 front-facing + 4 rear-facing LEDs

Key technical notes:

Option 1 (Single color): Provides consistent single-color illumination. The combination of front and rear LEDs ensures light emission from multiple angles.
Option 2 (Internal control): Built-in IC allows basic color-changing or dynamic effects without an external controller — simplifying installation for small projects.

Both options operate on low-voltage AC24V, making them safer for outdoor and damp-location installations.

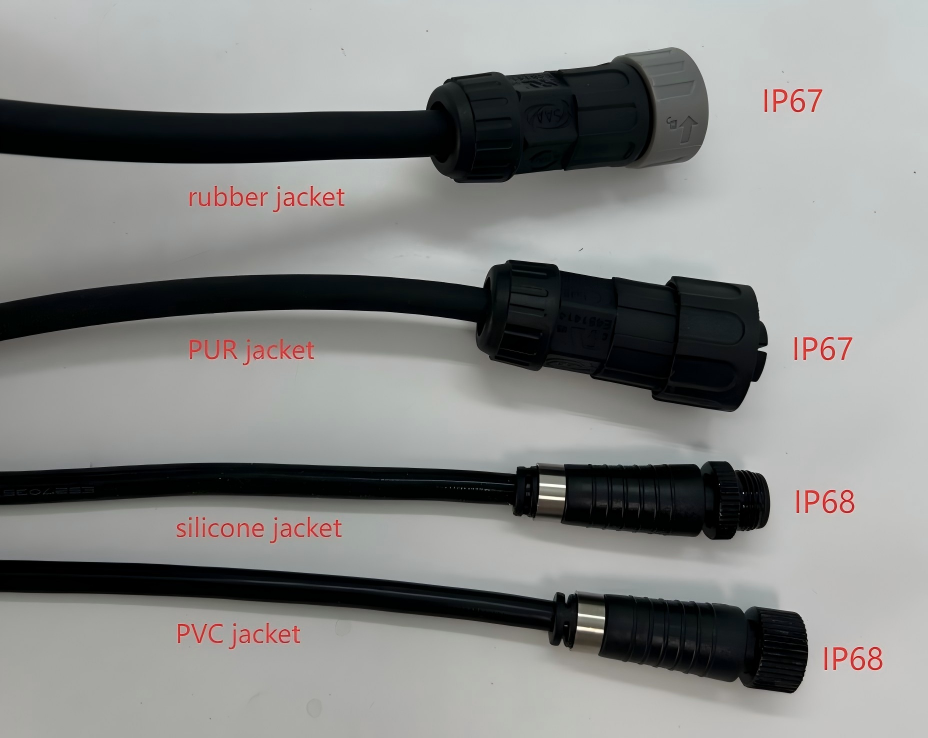

Cable and Connector Selection for Outdoor Use

For outdoor applications — where UV exposure, rain, and temperature swings are daily realities — cable and connector quality is critical.

We offer the following cable options:

Cable Type	Characteristics	MOQ	Price vs PVC	UL Certification
Silicone cable	Flexible, good heat resistance	Yes	Slightly higher	✅ Available
PUR cable	Abrasion-resistant, oil-resistant	Yes	Slightly higher	✅ Available
Rubber cable (4-pin)	Thicker, durable, ideal for larger point lights	No	Higher	✅ Available
PVC cable	Standard option	No	Baseline	✅ Available

Recommendation for high-UV environments: Choose silicone, PUR, or rubber cables. PVC cables may degrade faster under prolonged direct sunlight.

Waterproof connector options:

Both IP67 and IP68 male/female connectors are available with UL certification — ensuring compliance with North American safety standards.

Why Cable and Connector Choices Matter

Note: Rubber cables are thicker and better suited for larger point lights where cable durability is a priority. They are less ideal for very small or tight installation spaces.

Summary: Key Takeaways for Cabochon Light Selection

Consideration	Recommendation
Standard colored housing	No MOQ, readily available
Custom base design	Expect MOQ (we achieved 500 pcs for this project)
Single color, AC24V	2W, E14 base, 16+4 LED configuration available
Internal control (no external controller)	8+4 LED configuration, built-in IC
Outdoor UV protection	Choose silicone, PUR, or rubber cable (PVC not recommended)
Waterproofing	IP67 or IP68 with UL-certified connectors
Cable UL certification	Available across all cable types

Final Thoughts

Cabochon point lights may look similar on the outside, but what's underneath — the base design, LED layout, cable quality, and connector rating — determines real-world performance.

If you have a project requiring custom base designs, specific cable types, or UL-certified waterproof connectors, our team can help.
