Custom DMX512 360° Pixel Bulb – DC24V, RGBW, IP67, M12 Connectors
Shenzhen, China – July 2026
Xuanan Lighting is pleased to announce the release of our new Custom DMX512 360° Digital Pixel Bulb, featuring 3 high‑brightness SMD5054 RGBW (3000K) LEDs, DMX512 control with UCS512CBL IC, and a robust IP67 waterproof design. With a 114×45mm profile, 40cm custom pitch, and 25 bulbs per chain, this pixel bulb delivers vibrant, full‑color illumination with pure white light options — ideal for architectural outlines, festive displays, and dynamic signage.
What Makes This 360° Digital Pixel Bulb Unique?
Feature | Specification |
|---|---|
Product Name | Custom DMX512 360° Digital Pixel Bulb |
Dimensions | 114mm × 45mm |
LED Type | 3 × SMD5054 RGBW (3000K) |
Control Protocol | DMX512 (UCS512CBL IC, compatible with standard DMX) |
Power | 0.9W per bulb |
Voltage | DC24V |
Waterproof Rating | IP67 |
Connector | 4‑pin M12 male input / female output |
Pitch | 40cm (customizable) |
Chain Length | 25 bulbs per chain (customizable) |
Key Features
1. RGBW 4‑in‑1 Color – Pure White & Vivid Colors

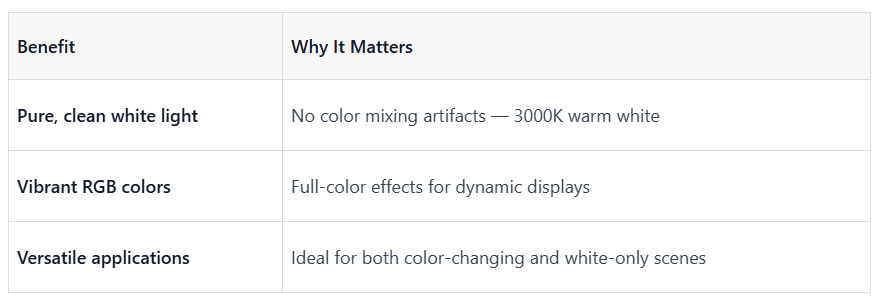

The 3 × SMD5054 RGBW LEDs integrate red, green, blue, and a dedicated 3000K warm white chip in a single package. This delivers:
2. DMX512 with UCS512CBL – Professional Control
The UCS512CBL IC ensures:
Standard DMX512 protocol – compatible with most professional lighting consoles
Reliable, long‑distance signal transmission
Smooth 8‑bit dimming for professional‑grade fades and transitions
3. IP67 Waterproof – Built for Outdoor Use
The IP67 rating ensures:
Full protection against dust and temporary immersion
Reliable performance in rain, snow, and harsh weather
Long‑term outdoor durability
Extra Protection: The base and main cable connection are sealed with waterproof glue before shipment, ensuring long‑term reliability for permanent outdoor installations.
4. 4‑pin M12 Connectors – Secure, Weatherproof Connections
The 4‑pin M12 male input and female output connectors offer:
Locking mechanism – prevents accidental disconnection
IP67‑rated – weatherproof and durable
Clear pinout – simple and reliable wiring

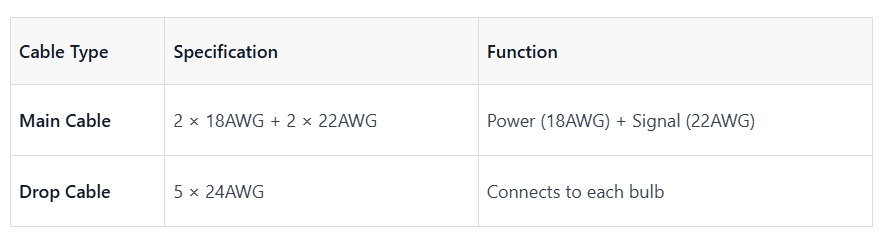

5. Optimized Cable Configuration for Long Runs
Power Performance: With 24V and 40cm pitch, 2 chains (50 bulbs) can run with power at both ends — ensuring consistent brightness across the entire installation.
6. Customizable Pitch & Chain Length
Parameter | Standard | Customizable |
|---|---|---|
Pitch | 40cm | ✅ Yes |
Chain Length | 25 bulbs | ✅ Yes |
Technical Specifications
Parameter | Value |
|---|---|
Product Name | Custom DMX512 360° Digital Pixel Bulb |
Dimensions | 114mm × 45mm |
LED Type | 3 × SMD5054 RGBW (3000K) |
Control IC | UCS512CBL (DMX512 compatible) |
Power per Bulb | 0.9W |
Voltage | DC24V |
Waterproof | IP67 (sealed base and cable connection) |
Connector | 4‑pin M12 (male input / female output) |
Pitch | 40cm (customizable) |
Bulbs per Chain | 25 (customizable) |
Main Cable | 2 × 18AWG (power) + 2 × 22AWG (signal) |
Drop Cable | 5 × 24AWG |

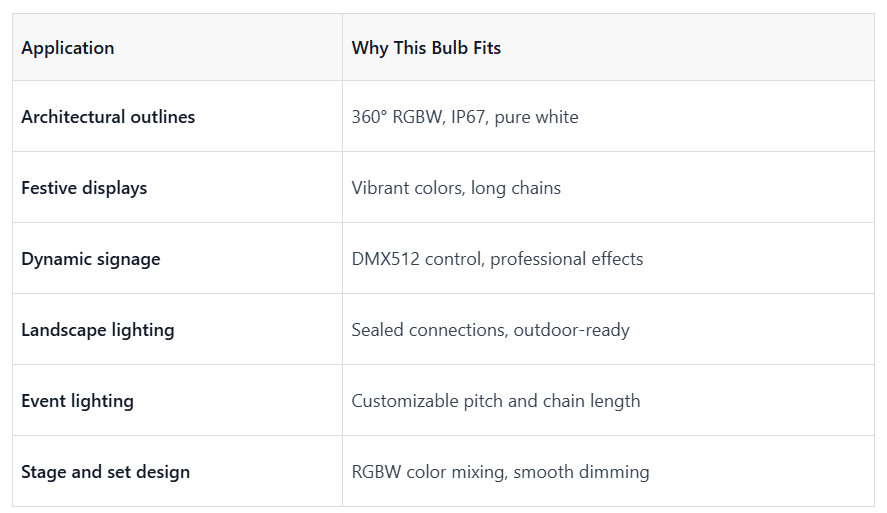

Applications

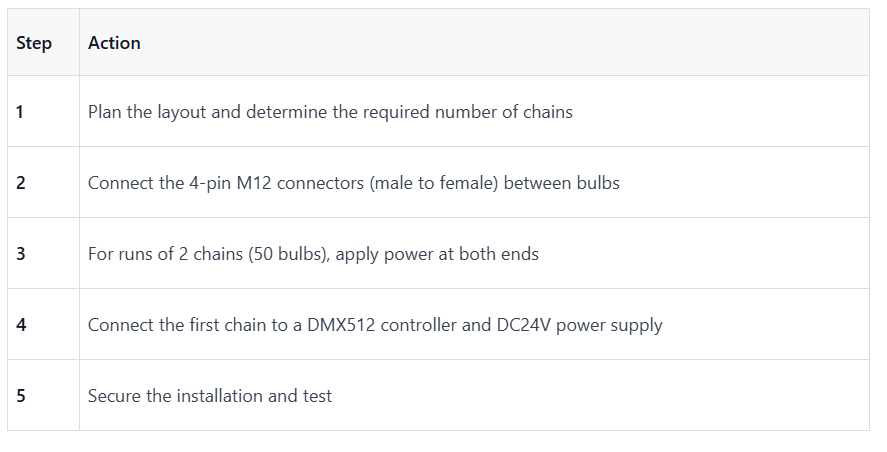

Installation Overview
Note: The base and main cable connection are pre‑sealed with waterproof glue, ensuring long‑term outdoor performance.

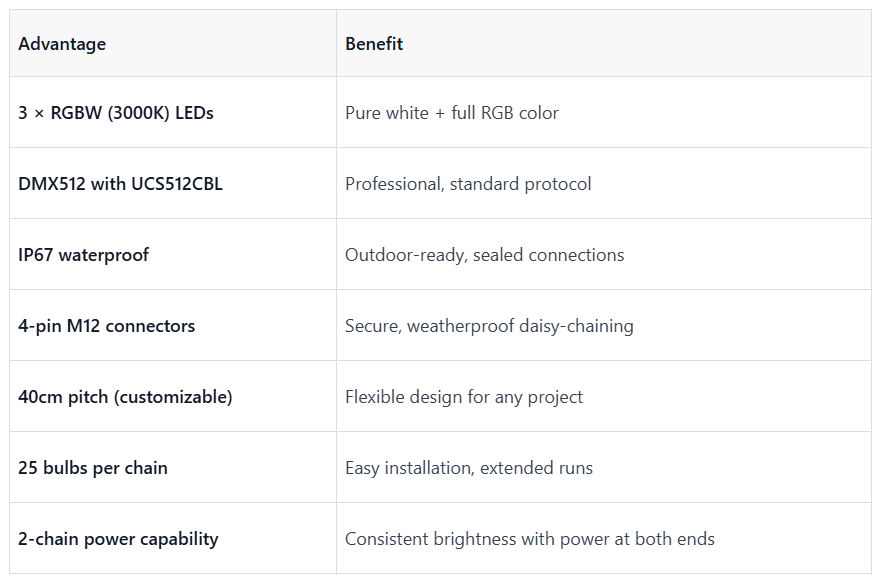

Summary
Availability
The new Custom DMX512 360° Digital Pixel Bulb is available for order now. Custom pitch, chain length, and cable configurations are available upon request.
👉 Contact Us Today for samples, technical support, or a quote.
