Xuanan Lighting Launches New 20mm WS2818 Point Lights – Break‑Point Continuity, IP66, DC12V
Shenzhen, China – July 2026
Xuanan Lighting is pleased to announce the release of our new 20mm WS2818 Point Lights, featuring the WS2818 driver IC with break‑point continuous transmission for enhanced reliability. With a compact 20mm diameter, IP66 waterproof rating, and DC12V operation, these point lights are ideal for landscape lighting, architectural accents, signage, and pixel displays where a single point of failure must not compromise the entire installation.
What Makes This WS2818 Point Light Unique?
Feature | Specification |
|---|---|
Product Name | 20mm Pixel Point Light |
LED Type | 1pcs SMD5050 RGB LED |
IC Type | WS2818 (external, SOP8 package) |
Voltage | DC12V |
Power | 0.3W |
Waterproof Rating | IP66 |
Key Features
1. WS2818 IC with Break‑Point Continuity

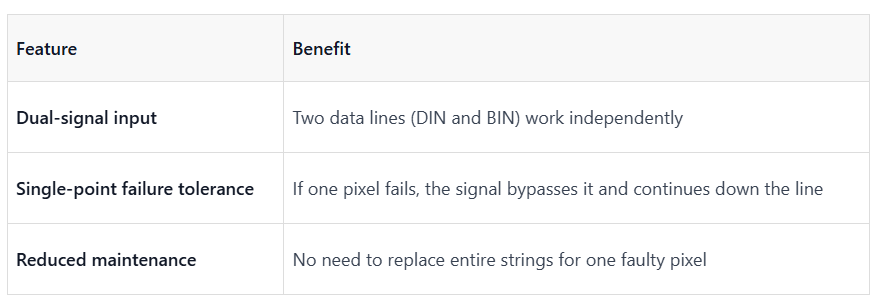

The WS2818 is a 3‑channel constant‑current LED driver IC with a critical feature for professional installations: break‑point continuous transmission. This means:
Why this matters: In long chains of point lights, a single failed pixel in a standard system can cause all downstream lights to fail. WS2818 eliminates this risk, making it ideal for hard‑to‑access outdoor installations.
2. High Reliability – 2KHz PWM Refresh Rate
The WS2818 offers a 2KHz PWM refresh rate, ensuring:
Flicker‑free performance – suitable for video recording
Smooth colour transitions – 256 grayscale levels per channel
Consistent colour across long cascades
3. IP66 Waterproof – Outdoor‑Ready
With an IP66 rating, these point lights are:
Dust‑tight – fully protected against dust ingress
Protected against powerful water jets – suitable for outdoor use in rain and harsh weather
Reliable for landscape, facade, and signage applications
4. Compact 20mm Diameter – Versatile Mounting
The 20mm size is ideal for:
Channel letters and signage
Building outlines
Pixel displays and grids
Landscape pathway lighting
5. DC12V Operation – Low‑Voltage Safety
Operating at DC12V provides:
Enhanced safety for outdoor and damp locations
Compatibility with standard 12V power supplies
Simple integration with existing pixel control systems

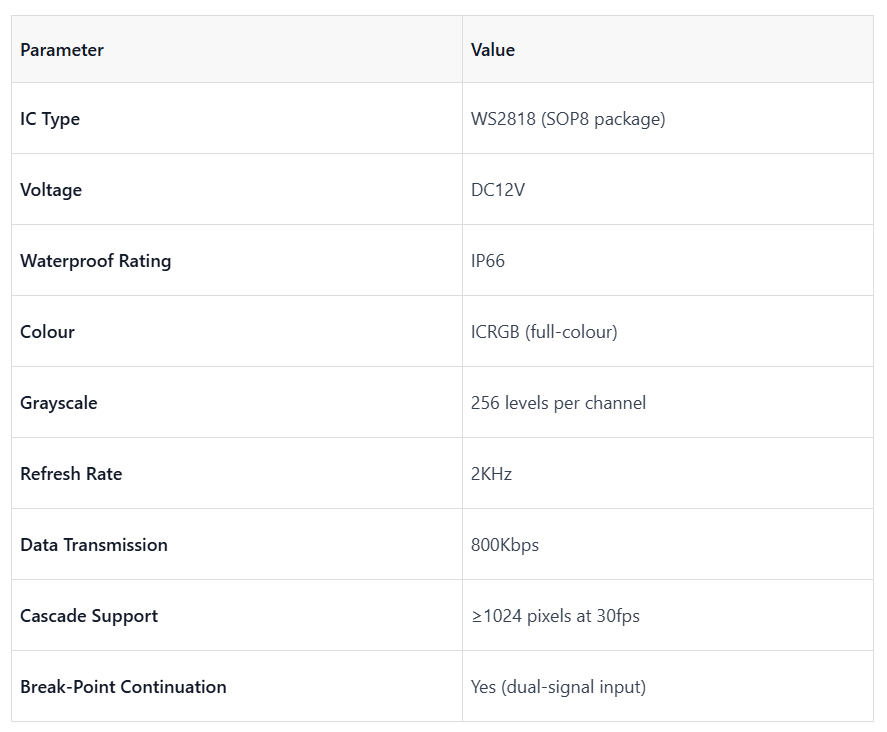

Technical Specifications

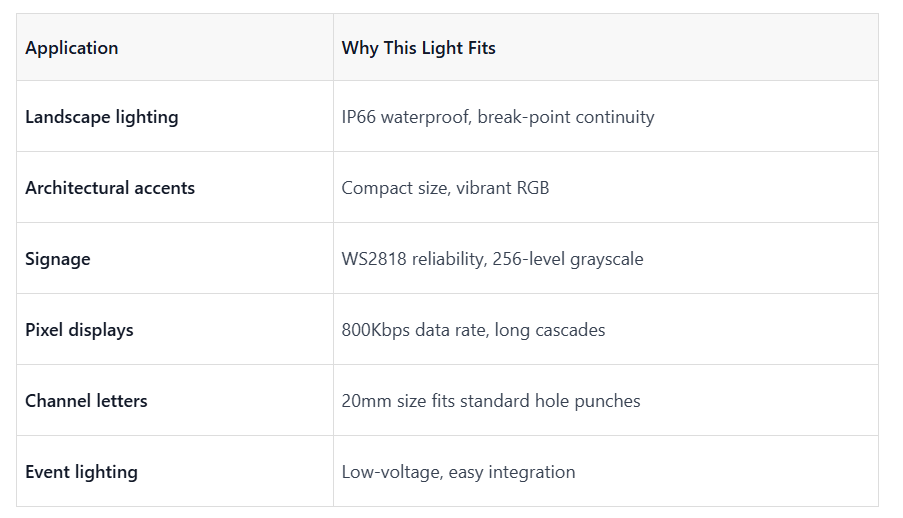

Applications

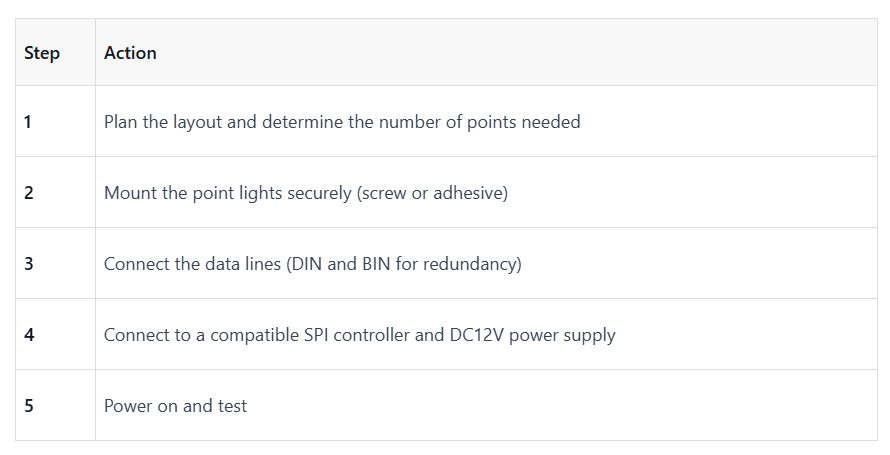

Installation Overview
Summary
Advantage | Benefit |
|---|---|
WS2818 IC | Break‑point continuity – single‑point failure doesn’t stop the chain |
Dual‑signal input | Redundant data path for reliability |
IP66 waterproof | Outdoor‑ready, dust‑tight |
20mm compact size | Fits standard signage hole punches |
DC12V operation | Low‑voltage safety |
256‑level grayscale | Smooth, professional colour transitions |
Availability
The new 20mm WS2818 Pixel Point Lights are available for order now. Custom lengths, cable configurations, and other specifications are available upon request.
