Xuanan Lighting Launches 25mm Pixel Bubble Tube Light – DC12V, WS2811/UCS1903, 360° Beam

Shenzhen, China – July 2026

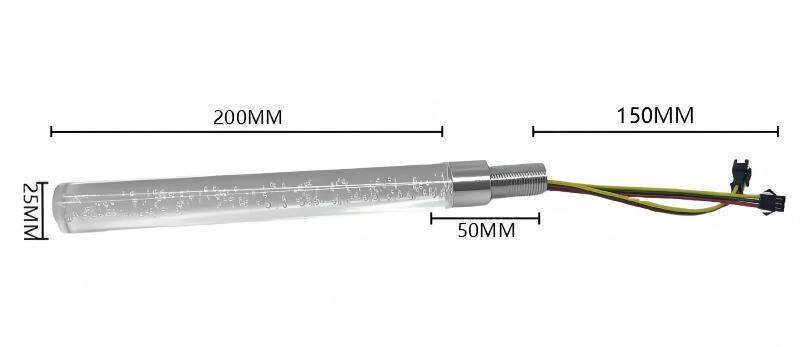

Xuanan Lighting is pleased to announce the release of our new 25mm Pixel Bubble Tube Light (Model: XXA-TUBE-D25L200) , a compact and vibrant lighting solution designed for dynamic color effects in a variety of applications. Featuring 3 SMD3535 RGB LEDs, 360° beam angle, DC12V operation, and WS2811/UCS1903 IC options, this 25mm diameter tube delivers brilliant full‑color illumination with individual pixel control.

Ideal for architectural accents, signage, event decorations, and retail displays, the XXA-TUBE-D25L200 offers both visual impact and reliable performance.

What Makes This Pixel Bubble Tube Unique?

Key Features

1. 3 SMD3535 RGB LEDs – Vibrant Full‑Color Output

The tube features 3 high‑brightness SMD3535 RGB LEDs, delivering:

• Rich, saturated colors for dynamic effects

• Individual pixel control – each LED can be addressed separately

• Smooth color mixing – 256 grayscale levels per channel (WS2811)

2. 360° Beam Angle – Wide, Uniform Illumination

The 360° beam angle ensures:

• Even light distribution from every angle

• No dark spots or shadows

• Versatile placement – suitable for surface or pendant mounting

3. Compact 25mm Diameter – Versatile Size

The 25mm diameter is ideal for:

• Tight installation spaces

• Architectural accents – clean, discreet appearance

• Signage and channel letters – where smaller light points are required

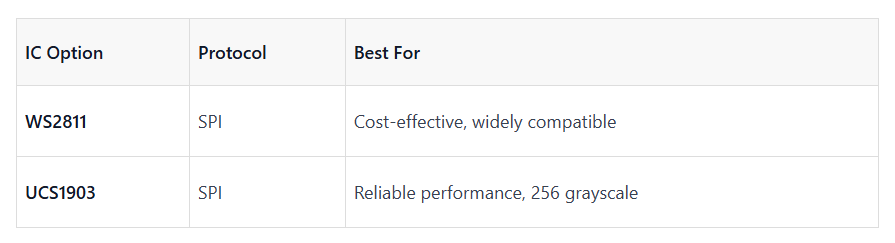

4. WS2811 / UCS1903 IC Options – Pixel‑Level Control

Both ICs provide:

• Individual addressability – each LED controlled independently

• 256 grayscale levels – smooth, professional colour transitions

• Single‑wire data transmission – easy cascading

5. 3‑Pin Connectors – Easy Daisy‑Chaining

The 3‑pin male/female connectors provide:

• Simple daisy‑chaining – extended runs with minimal wiring

• Secure connections – reliable signal and power transmission

6. Multiple Length Options – Flexible Installation

7. 19mm Mounting Hole – Easy Installation

The 19mm mounting hole is a standard size, making it:

• Easy to integrate into existing installations

• Compatible with most signage and architectural fixtures

• Quick to install with minimal preparation

8. Low Power Consumption – 0.72W per Unit

With only 0.72W per unit, this tube is:

• Energy‑efficient – reduces operating costs

• Suitable for long runs – lower total power demand

• Environmentally friendly – minimal energy waste

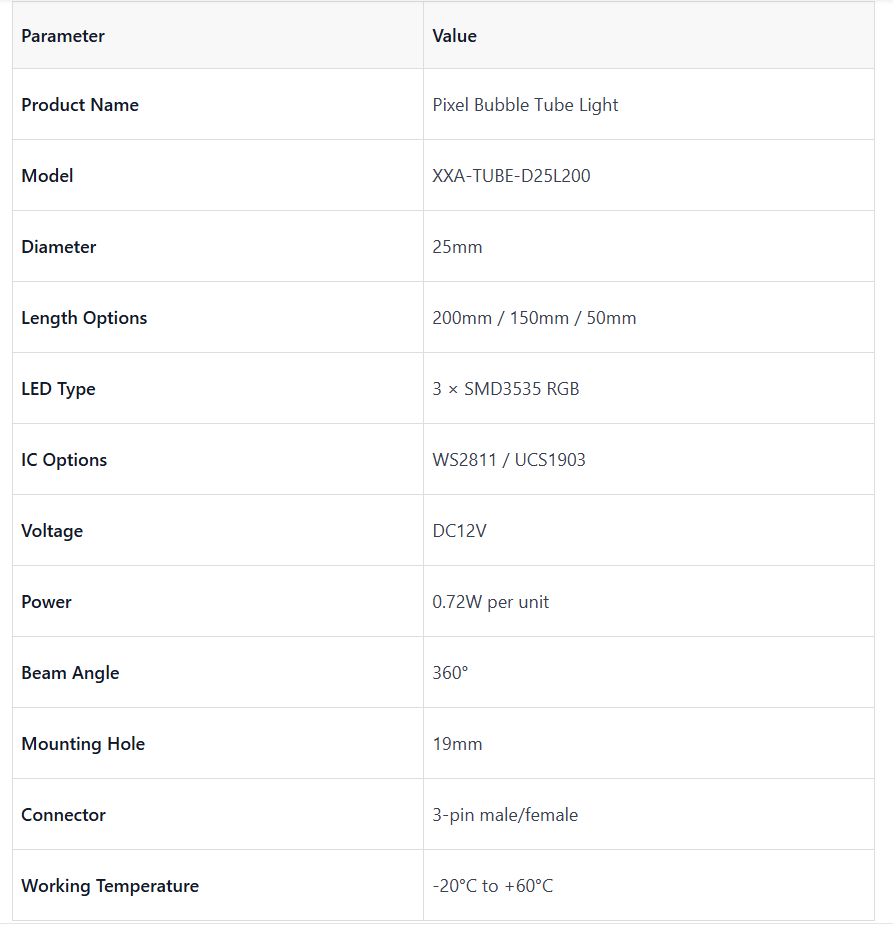

Technical Specifications

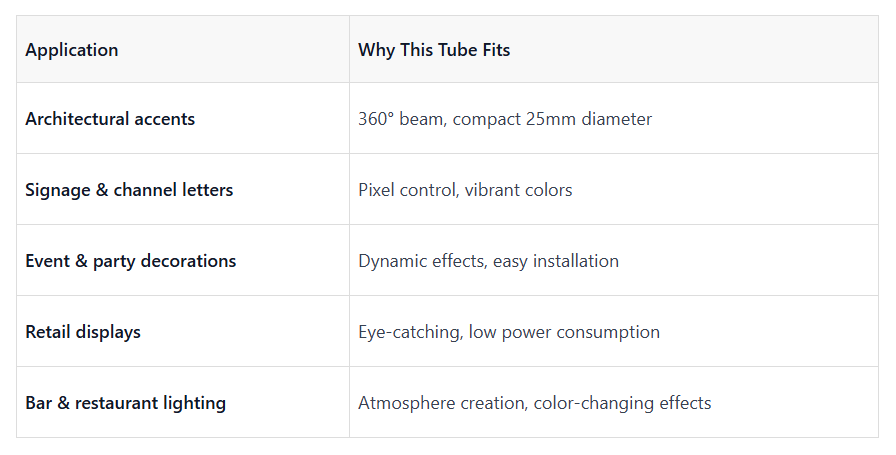

Applications

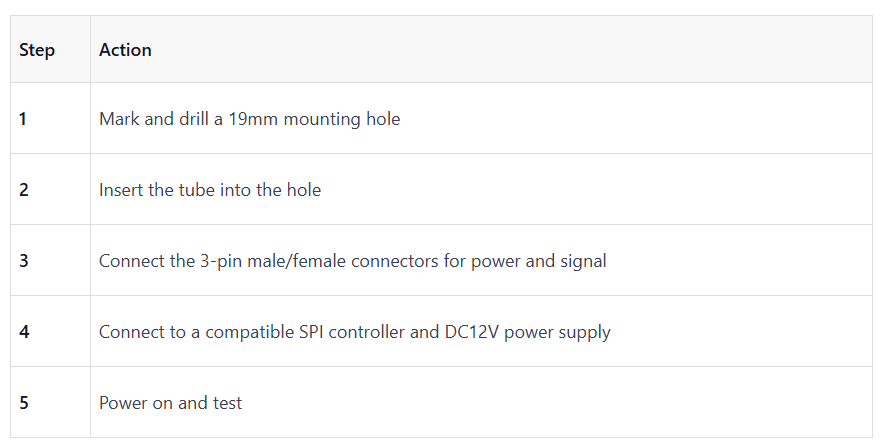

Installation Overview

Summary

Availability

The new 25mm Pixel Bubble Tube Light (XXA-TUBE-D25L200) is available for order now. Custom lengths and configurations are available upon request.
