Xuanan Lighting Launches Addressable Crystal Ball String Lights – 25mm/35mm, 360°, IP66
Shenzhen, China – June 2026
Xuanan Lighting is pleased to announce the release of our new Addressable Crystal Ball String Lights, available in 25mm and 35mm diameters with 360° illumination and IP66 waterproof rating.
Designed for festive decorations, theme parks, amusement venues, and curtain lighting projects, these crystal ball strings combine elegant appearance with dynamic pixel control.
What Makes These Crystal Ball Strings Unique?
Feature | Specification |
|---|---|
Product name | XXA-C25/C35-360D |
Diameter options | 25mm / 35mm |
LEDs per ball | 2 / 4 / 6 pcs (SMD3535 RGB) |
Lighting type | Double-sided (front + back), 360° beam angle |
Voltage | DC12V (25mm) / DC24V (35mm) |
IC options | UCS1903 / WS2811 / GS8206 |
Spacing | 8cm (customizable) |
Balls per string | 20 pcs (customizable) |
IP rating | IP66 (weatherproof for outdoor use) |
Warranty | 2 years |
Key Features
1. 360° Full Illumination

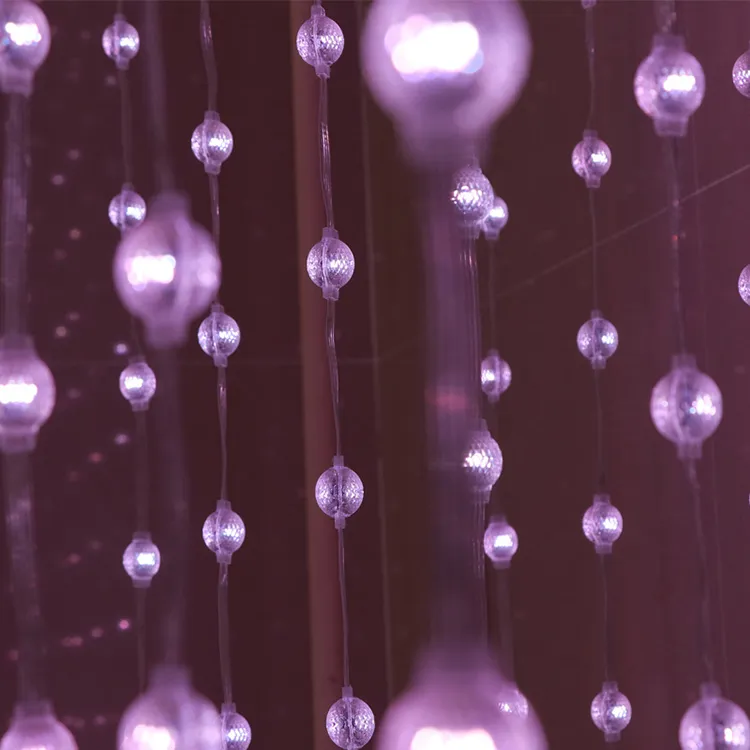

Unlike standard string lights that emit light in only one direction, these crystal balls feature double-sided LEDs (front and back) with a transparent crystal housing, creating true 360° light emission — visible from every angle.
2. Addressable Pixel Control
Each ball can be controlled individually using popular SPI protocols:
With individual pixel control, you can create:
Chasing and flowing effects
Rainbow and gradient animations
Custom programmed light shows
3. Three Housing Options
All housings are made of transparent crystal material for maximum light transmission.
4. IP66 Waterproof – Built for Outdoor Use
With an IP66 rating, these string lights are:
Fully protected against dust
Protected against powerful water jets (rain, hose washing)
Suitable for year-round outdoor installation
5. Customizable Configuration
This flexibility allows you to tailor the product exactly to your project requirements — from intimate home decor to large-scale commercial installations.
Specifications
General Parameters
Parameter | 25mm Version | 35mm Version |
|---|---|---|
Diameter | 25mm | 35mm |
Input voltage | DC12V | DC24V |
LEDs per ball | 2 pcs (SMD3535) | 4 or 6 pcs (SMD3535) |
LED configuration | 1 front + 1 back | 2+2 or 3+3 |
Power per ball (max) | 0.48W | 0.96W / 1.44W |
Lumens per ball (max) | 38.4 lm | 76.8 / 115.2 lm |
Spacing | 8cm (customizable) | 8cm (customizable) |
Balls per string | 20 pcs (customizable) | 20 pcs (customizable) |
Beam angle | 360° | 360° |
IP rating | IP66 | IP66 |
Connector | 4-pin JST (male/female) | 4-pin JST (male/female) |
Working temperature | -20°C to +60°C | -20°C to +60°C |
Warranty | 2 years | 2 years |
IC Comparison
Accessories (Available Separately)
Installation
Secure one end of the LED pixel string light to the mounting structure
Hang the string in the desired pattern (straight, zig-zag, curtain style)
Connect the 4-pin JST connectors between strings
Connect to controller and power supply
Power on and select desired effects
The strings are ready to hang and use — no complex assembly required.
Applications
Summary
Availability
The new Addressable Crystal Ball String Lights (25mm and 35mm) are available for order now. Custom configurations — including spacing, balls per string, IC chip, and LED count — are available upon request.
