Xuanan Lighting Launches Custom D25 Pixel Neon Tube – 240 LEDs/m, UCS5603, DC24V, 5m
Shenzhen, China – August 2026
Xuanan Lighting is pleased to announce the release of our new Custom D25 Pixel Neon Tube (Model: XXA-TUBE-D25-UCS5603-24V) , featuring 240 high-density SMD2835 RGB LEDs per meter, UCS5603 pixel control, and a sleek white neon housing. With DC24V operation, 23W/m power consumption, and a 5‑meter continuous length, this tube delivers vibrant, uniform color with individual pixel addressability.
Ideal for architectural outlining, signage, event decorations, and retail displays, the XXA-TUBE-D25-UCS5603-24V offers professional‑grade performance with reliable waterproof connectors and additional power leads for extended runs.
What Makes This D25 Pixel Neon Tube Unique?
Feature | Specification |
|---|---|
Product Name | Custom D25 Pixel Neon Tube |
Model | XXA-TUBE-D25-UCS5603-24V |
LED Type | 240 × SMD2835 RGB LEDs |
LED Density | 240 LEDs per meter |
IC Type | UCS5603 (pixel‑addressable) |
Voltage | DC24V |
Power | 23W per meter |
Housing Color | White (neon tube) |
Length | 5 meters per roll |
Connector | 4‑pin waterproof male/female with additional power leads (red/black wire) |
Key Features
1. High Density – 240 LEDs/m
With 240 SMD2835 RGB LEDs per meter, this neon tube delivers:
Exceptional brightness for high‑visibility applications
Vibrant, saturated colors with smooth transitions
Seamless, continuous light – no visible dark spots
2. UCS5603 Pixel Control – Individual Addressability
The UCS5603 IC provides:
Individual pixel control – each LED is independently addressable
256 grayscale levels per channel for smooth, professional colour transitions
Single‑wire data transmission – easy cascading and installation
3. DC24V Operation – Long‑Run Performance
Operating at DC24V offers:
Reduced voltage drop – consistent brightness over longer distances
Efficient power consumption (23W/m)
Compatibility with standard 24V power supplies
4. 4‑pin Waterproof Connectors with Additional Power Leads
The tube features 4‑pin waterproof male/female connectors with additional power leads (red/black wire) , providing:
Reliable, weather‑resistant connections – suitable for outdoor use
Easy daisy‑chaining – extended runs with minimal wiring
Power injection capability – additional leads allow for mid‑run power feeding to maintain brightness over long distances
5. White Neon Housing – Clean, Modern Appearance
The white neon housing offers:
A sleek, contemporary look – blends seamlessly into modern architectural designs
Excellent light diffusion – creates a smooth, uniform glow
Versatile installation – suitable for both indoor and outdoor applications
6. 5‑Meter Length – Extended Coverage
The 5‑meter roll provides:
Extended continuous runs – fewer connections and installation points
Reduced installation time – less splicing and soldering
Flexibility – can be cut to custom lengths as needed
Technical Specifications
Parameter | Value |
|---|---|
Product Name | Custom D25 Pixel Neon Tube |
Model | XXA-TUBE-D25-UCS5603-24V |
LED Type | 240 × SMD2835 RGB |
LED Density | 240 LEDs/m |
IC Type | UCS5603 |
Voltage | DC24V |
Power | 23W/m |
Housing Color | White |
Length | 5m per roll |
Connector | 4‑pin waterproof M/F + additional power leads (red/black) |

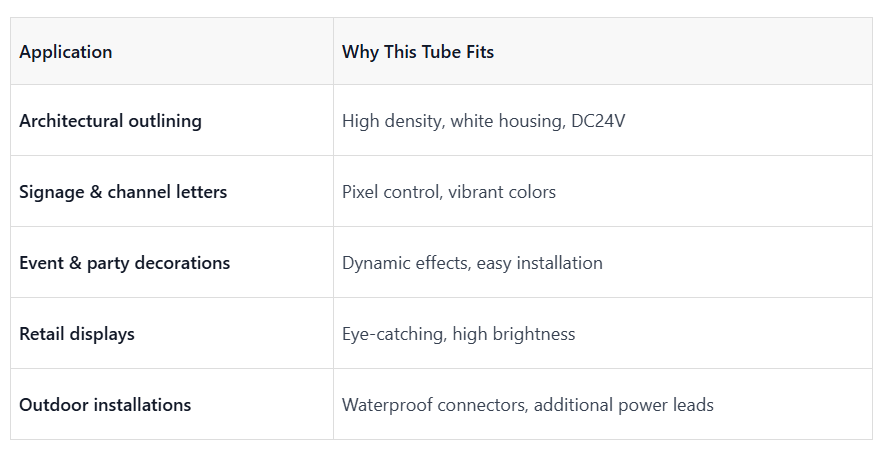

Applications

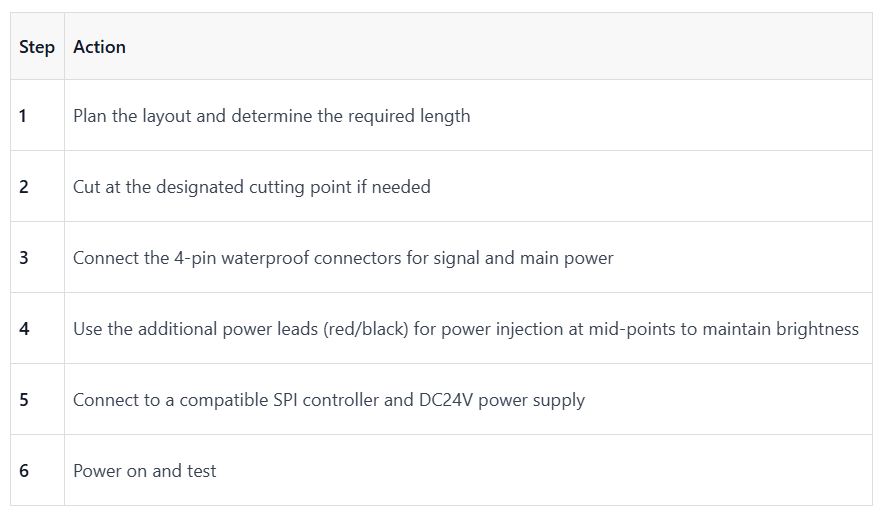

Installation Overview
Note: The additional power leads allow for easy power injection, ensuring consistent brightness over extended runs.

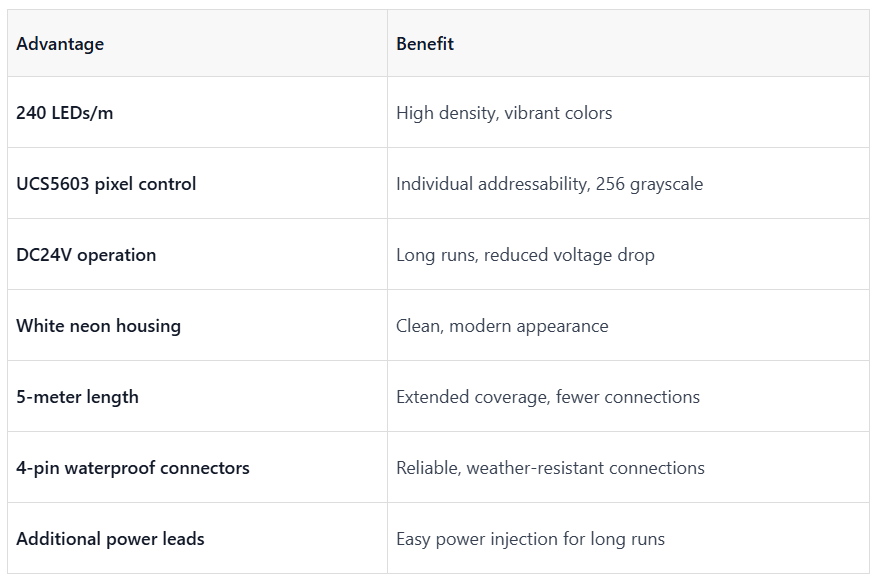

Summary
Availability
The new Custom D25 Pixel Neon Tube (XXA-TUBE-D25-UCS5603-24V) is available for order now. Custom lengths and configurations are available upon request.
👉 Contact Us Today for samples, technical support, or a quote.
