Xuanan Lighting Launches D40mm 360° RGB Pixel Tube – SPI/DMX, 144 LEDs, DC12V/24V
Shenzhen, China – August 2026
Xuanan Lighting is pleased to announce the release of our new D40mm 360° RGB Pixel Tube (Model: XXA-TUBE-D40L167) , featuring 144 high-brightness SMD5050 RGB LEDs per meter and 24 LEDs per tube, offering dynamic pixel control in a sleek 40mm diameter acrylic housing. Available with SPI or DMX control protocols, this tube delivers vibrant full‑color illumination with a 360° beam angle for seamless visual impact.
Ideal for stage lighting, DJ setups, bars, event decorations, and retail displays, the XXA-TUBE-D40L160 offers flexible voltage options and pixel grouping to suit your installation needs.
What Makes This 360° RGB Pixel Tube Unique?
Feature | Specification |
|---|---|
Product Name | 360° RGB Pixel Tube |
Model | XXA-TUBE-D40L167 |
Diameter | 40mm |
LED Type | 144 × SMD5050 RGB LEDs |
Total LEDs per Tube | 24 LEDs (16.7cm per tube) |
Pixel Configuration | 12V: 3 LEDs per pixel (8 pixels) |
Control Protocol | SPI or DMX |
Voltage | DC12V / DC24V |
Power | 35W per meter |
Beam Angle | 360° |
Mounting | Suspended / pendant installation |
Connector | 3pin or 5pin male/female connectors |
Working Temperature | -20°C to +60°C |
Key Features
1. 144 LEDs/m – High Density, Vivid Colors
With 144 SMD5050 RGB LEDs per meter, this tube delivers:
High brightness for excellent visibility
Saturated, vibrant colors for dynamic displays
Smooth color mixing – 256 grayscale levels per channel

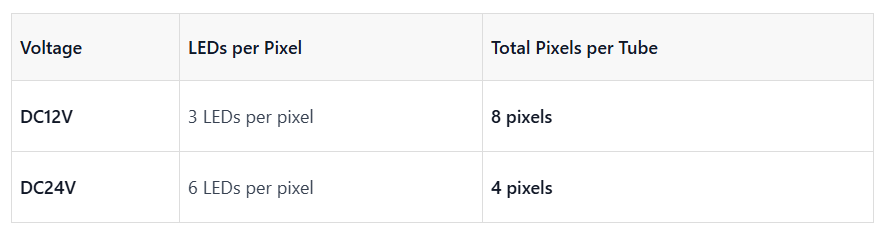

2. Flexible Pixel Grouping – 12V vs 24V
Why this matters: The 12V version offers higher resolution (8 pixels per tube) for more detailed animations, while the 24V version is optimized for longer runs with reduced voltage drop.
3. 360° Beam Angle – Seamless, Uniform Light
The 360° beam angle ensures:
Even light distribution from every angle
No dark spots or shadows
Immersive visual effects – ideal for suspended installations

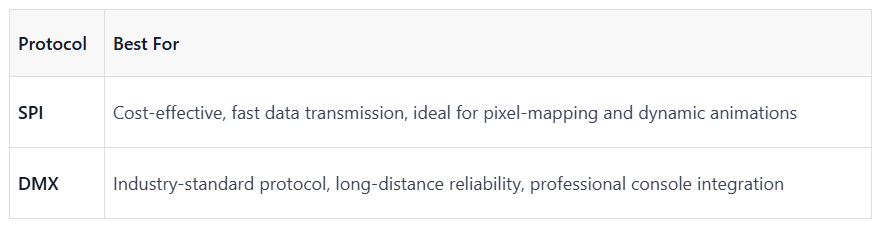

4. SPI/DMX Control – Flexible Integration
Both protocols offer reliable performance. Choose SPI for cost‑effective pixel control or DMX for integration with professional lighting consoles.
5. Suspended Pendant Design – Eye‑Catching Installation
The suspended/pendant mounting design makes it ideal for:
Hanging installations – chandelier‑style displays
Vertical and horizontal mounting – flexible layout options
Architectural accents – modern, sleek appearance

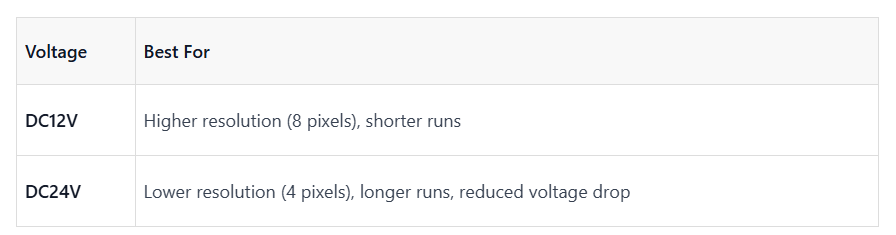

6. Dual Voltage – DC12V or DC24V
7. 3Pin or 5pin Connectors – Easy Daisy‑Chaining
The 3pin (SPI) or 5pin (DMX) male/female connectors provide:
Simple daisy‑chaining – extended runs with minimal wiring
Secure connections – reliable signal and power transmission

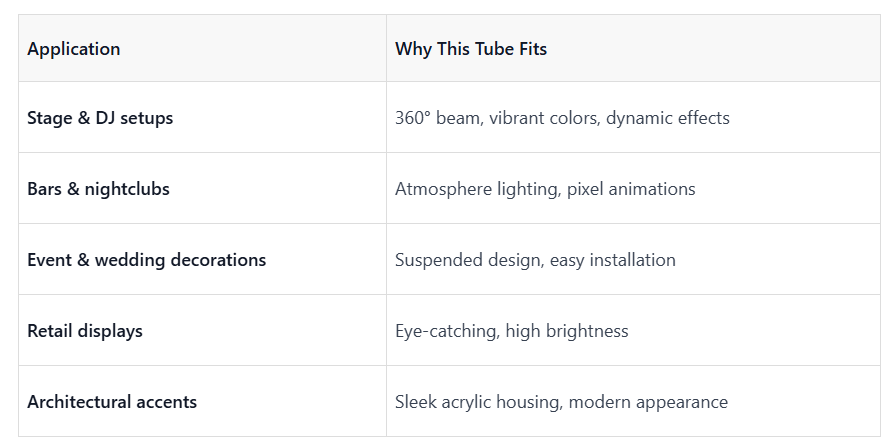

Applications

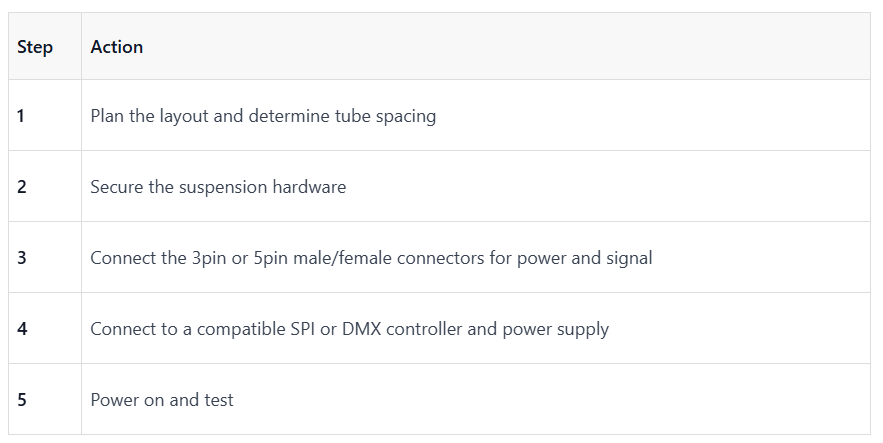

Installation Overview

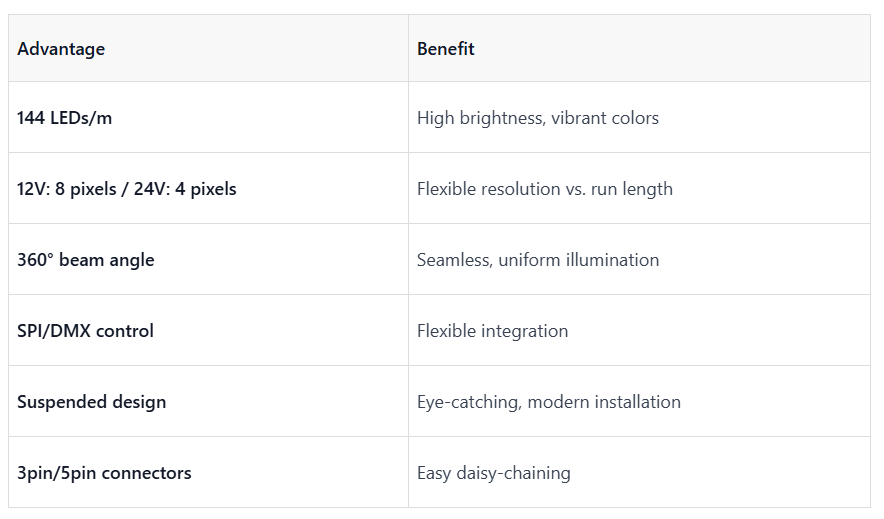

Summary
Availability
The new D40mm 360° RGB Pixel Tube (XXA-TUBE-D40L160-12V and XXA-TUBE-D40L167-24V) is available for order now. Custom lengths and configurations are available upon request.
👉 Contact Us Today for samples, technical support, or a quote.
