Shenzhen, China – June 2026

Xuanan Lighting is pleased to announce the release of our new DMX512 Addressable LED Strip (Model: XXA-10D5050RGB-DMX512-12V) , designed for applications requiring professional-grade control and reliable performance.

With 10 individually addressable LEDs per meter and standard DMX512 protocol support, this strip is ideal for stage lighting, studio work, event decor, retail displays, and entertainment venues.

What Makes This Strip Unique?

Feature	Specification
Model	XXA-10D5050RGB-DMX512-12V
LED density	10 LEDs per meter
IC density	10 ICs per meter (1 IC controls 1 LED)
Protocol	DMX512 (industry standard)
Voltage	DC12V
Power	7.2W per meter
PCB width	12mm
PCB color	White or black
Copper thickness	2oz
IP rating	IP20 (non-waterproof)
Beam angle	120°
Standard length	5.7m per roll (57 LEDs)
Cutting length	100mm (cut at copper tabs)
Lifespan	30,000–50,000 hours
Warranty	2 years

Key Features

1. Individual Pixel Control – 10 Addressable Sections Per Meter

Each meter contains 10 individually controllable pixels (1 LED = 1 pixel). This enables:

2. Standard DMX512 Protocol – Professional Control

DMX512 is the industry standard for professional lighting control. Benefits include:

This makes the strip suitable for integration into existing DMX-controlled lighting systems — from small stages to large venues.

3. Flexible Installation – Cut at Every Copper Tab

The strip can be cut at each copper tab (every 100mm), allowing precise sizing for any project. It can also be joined between sections using the same copper tabs.

4. 2oz Copper PCB – Better Performance

The strip uses 2oz copper thickness on the PCB, providing:

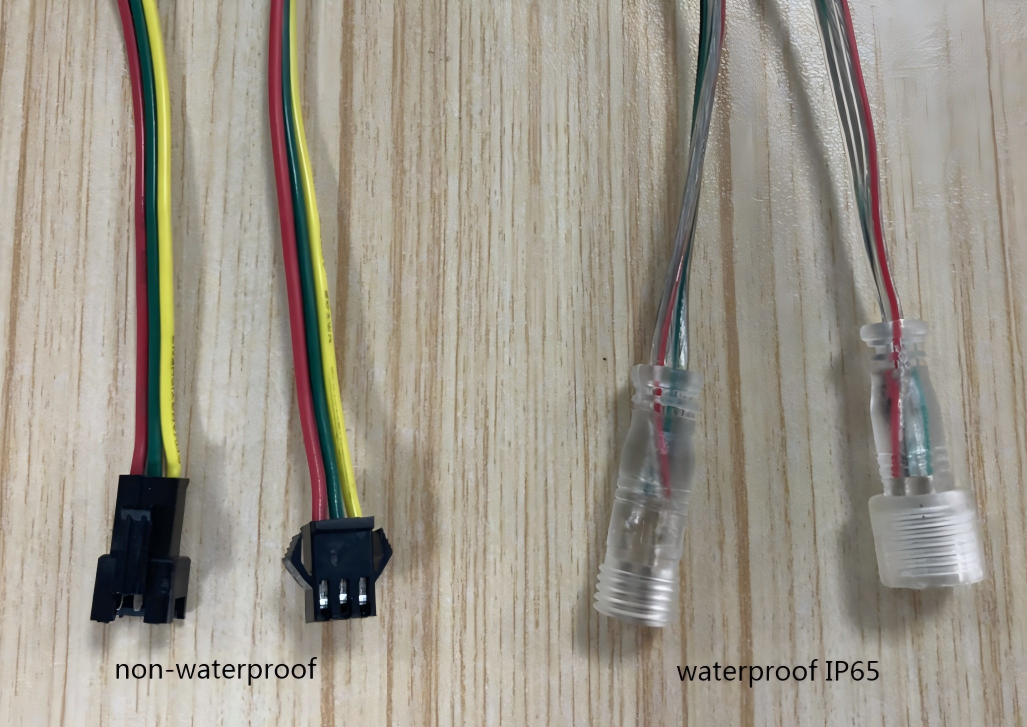

5. 3-Pin JST Connectors – Easy Daisy-Chaining

The strip comes with 3-pin male/female JST connectors, making it easy to:

Daisy-chain multiple strips
Connect to DMX controllers
Add extension cables or T-type connectors for power injection

Specifications

General Parameters

Parameter	Value
LED type	SMD5050 RGB
LED density	10 LEDs/m
IC density	10 ICs/m
Control protocol	DMX512
Input voltage	DC12V
Power consumption	7.2W per meter
PCB width	12mm
PCB copper thickness	2oz
Beam angle	120°
IP rating	IP20 (non-waterproof)
Connector type	3-pin JST (male/female)
Standard length	5.7m (57 LEDs)
Cutting length	100mm
Adhesive	3M double-sided tape
Working temperature	-20°C to +60°C
Lifespan	30,000–50,000 hours
Warranty	2 years

Available Options

Accessories (Available Separately)

Installation Instructions

For runs longer than 5 meters, consider power injection or mid-point power supply to maintain uniform brightness.

Applications

Summary

Availability

The new DMX512 Addressable LED Strip (XXA-10D5050RGB-DMX512-12V) is available for order now. Custom lengths, PCB colors, and higher IP ratings are available upon request.
