Shenzhen, China – August 2026

Xuanan Lighting is pleased to announce the release of our new DMX512 Linear Light (Model: XXA-96D3535RGB-DMX512) , a high-performance, digitally addressable rigid bar designed for commercial facades, landscape lighting, and architectural accents.

Featuring 96 SMD3535 RGB LEDs per meter, DMX512 protocol with UCS512 IC, and a robust IP68 waterproof aluminum housing, this linear light delivers vibrant, controllable color in a durable, low-voltage (DC24V) package.

What Makes This DMX512 Linear Light Unique?

Feature	Specification
Model	XXA-BAR-96D3535RGB-DMX512
Light Source	SMD3535 RGB LED
LED Density	96 LEDs/m
Pixel Density	16 pixels/m (1 IC controls 6 LEDs)
IC Chip	UCS512 (Standard DMX512) or customized
Voltage	DC24V
Power	23W/m (max)
Beam Angle	180°
Dimensions	20mm (W) × 38mm (H) × 1000mm (L)
Housing	Black aluminum with IP68 waterproofing (PU glue injection)
Connector	Waterproof female/male connectors
Certification	CE, RoHS
Working Temperature	-20°C to +60°C
Storage Temperature	-30°C to +80°C
Available Lengths	0.5m, 1m, 1.5m, 2m

Key Features

1. Standard DMX512 Protocol – Professional Control

The built-in UCS512 IC supports the industry-standard DMX512 protocol, ensuring:

Seamless integration with Artnet DMX controllers and Madrix
Reliable, long-distance signal transmission
Compatibility with existing DMX lighting systems

2. High Density – 96 LEDs/m, 16 Pixels/m

With 96 LEDs per meter organized into 16 addressable pixels (1 IC controls 6 LEDs), this light delivers:

Vibrant, uniform color
Smooth animations and color transitions
Excellent resolution for detailed lighting effects

3. 180° Beam Angle – Wide, Even Illumination

The 180° beam angle ensures wide, uniform light distribution, making it ideal for:

Wall washing and grazing
Building outlines and facades
Landscape and pathway lighting

4. IP68 Waterproof – Built for Outdoor Use

The IP68 waterproof rating (achieved through high-quality PU glue injection into an aluminum housing) means:

Full protection against dust and prolonged submersion
Reliable performance in harsh outdoor environments
Durability for long-term installations

5. Robust Aluminum Housing

The black aluminum housing provides:

Excellent heat dissipation – extending LED lifespan
Structural rigidity – maintaining straight lines in installations
Sleek, professional appearance

6. Flexible Installation – Multiple Lengths & Mounting

The bar is available in 0.5m, 1m, 1.5m, and 2m lengths, with two mounting options:

Aluminum housing without PVC cover
Aluminum housing with PVC cover (for added protection)

Each bar includes 2 movable aluminum holders for easy, secure installation.

7. Low Voltage DC24V – Safe & Efficient

Operating at DC24V provides:

Enhanced safety for outdoor and wet locations
Reduced voltage drop – allowing for longer cable runs
Energy efficiency

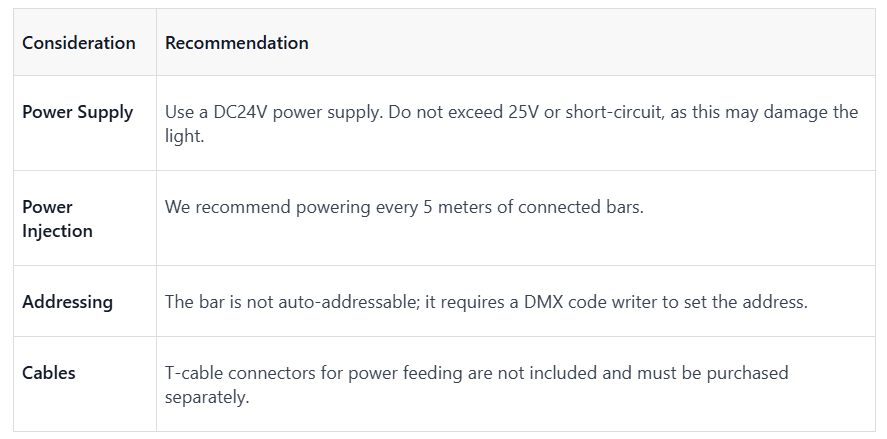

Important Installation Notes

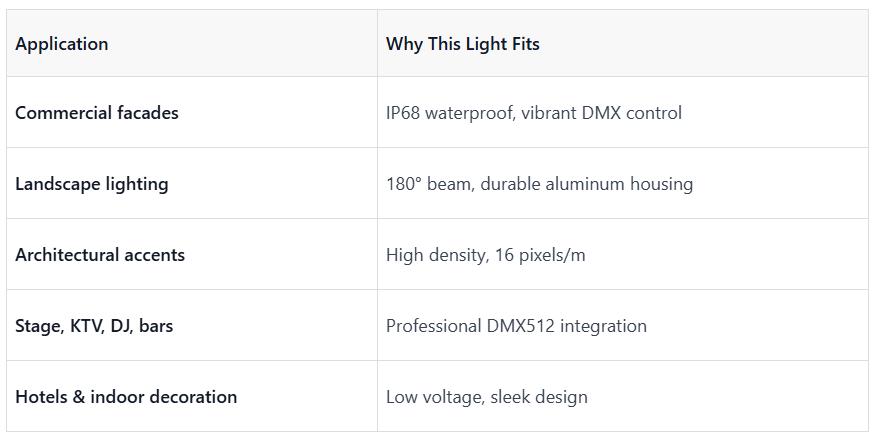

Applications

Summary

Advantage	Benefit
96 LEDs/m, 16 pixels/m	High resolution, smooth animations
DMX512 with UCS512 IC	Standard protocol, professional control
IP68 waterproof	Reliable for outdoor and harsh environments
180° beam angle	Wide, even light distribution
Multiple lengths (0.5–2m)	Flexible installation options
Aluminum housing	Durable, excellent heat dissipation
CE & RoHS certified	Compliance for international markets

Availability

The new DMX512 Linear Light is available for order now. Choose from multiple lengths (0.5m, 1m, 1.5m, 2m) and housing options (with or without PVC cover). Custom configurations are available upon request.
