Shenzhen, China – June 2026

Xuanan Lighting is pleased to announce the release of our new Pixel Mesh Screen Series, available in P20, P25, P50, and P100 pixel pitches. Designed for large-scale architectural facades, event stages, and creative displays, these lightweight, flexible mesh screens offer high brightness, 256-level grayscale, and IP65 weather resistance.

Featuring a no-soldering process, SPI control, and customizable sizes, this series provides a durable and easy-to-install solution for dynamic visual applications.

What Makes This Pixel Mesh Screen Series Unique?

Feature	Specification
Models	P20, P25, P50, P100
Pixel Pitch	20mm / 25mm / 50mm / 100mm
LED Chip	Sanan (high-quality)
IC Brand	Mingwei
LED Brand	Cailide
Voltage	DC12V
Control Protocol	SPI
Waterproof Rating	IP65
Beam Angle	120°
Grayscale	256 levels
Refresh Rate	2000Hz
Mounting Method	Steel wire tensioning
Production Process	Solder-free
Cable Specification	4×7×0.16mm
Customization	Size customizable per request

Model Comparison

Key Features

1. Multiple Pixel Pitches – One Solution for Every Project

2. High-Quality Components

3. IP65 Weatherproof – Outdoor-Ready

With an IP65 waterproof rating, the mesh screen is:

Dust-tight
Protected against water jets
Suitable for outdoor facades, stages, and event installations

4. 256-Level Grayscale – Smooth Video Playback

The 256-level grayscale ensures smooth color transitions and detailed image reproduction, making it suitable for:

Video playback
Dynamic animations
Text and graphic displays

5. 2000Hz Refresh Rate – Flicker-Free

With a 2000Hz refresh rate, the screen provides:

Flicker-free performance
Clear visuals in video recordings
Stable display for high-speed content

6. Solder-Free Production – Durable & Reliable

The solder-free manufacturing process reduces failure points and improves long-term durability, especially in outdoor environments.

7. Easy Installation – Steel Wire Tensioning

The mesh screen is fixed using steel wire tensioning, making installation:

Quick and straightforward
Adaptable to various facade shapes
Secure and stable

8. Customizable Size

Each model can be customized to your required dimensions, ensuring a perfect fit for any project.

Applications

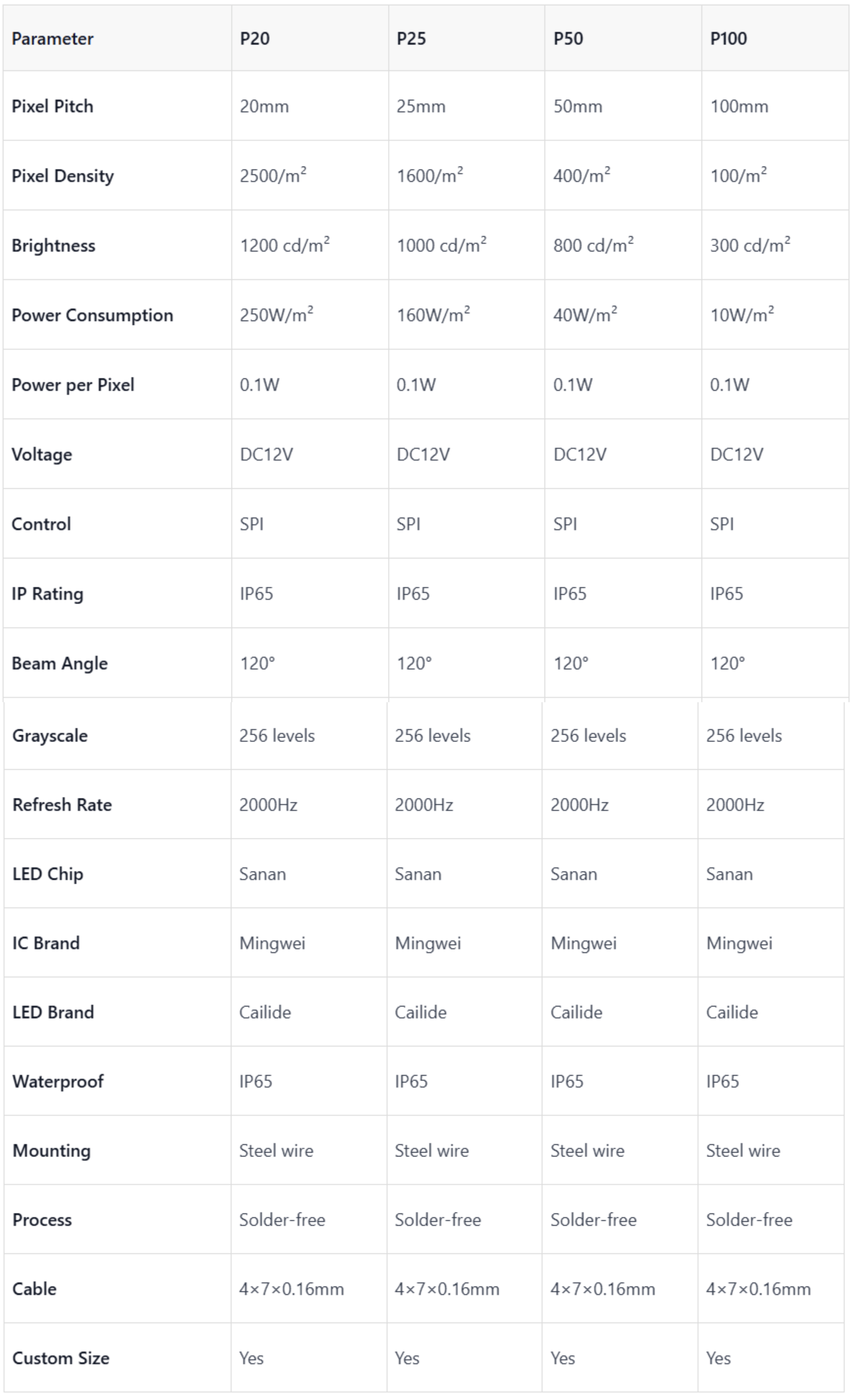

Technical Specifications Comparison

Installation Overview

Summary

Availability

The new Pixel Mesh Screen Series (P20, P25, P50, P100) is available for order now. Custom sizes, pitches, and configurations are available upon request.

👉 Contact Us Today for samples, technical support, or a quote.
