Shenzhen, China – August 2026

Xuanan Lighting is pleased to announce the release of our new SK6812 Digital LED Strip Series, featuring high‑density SMD5050 RGB LEDs with densities ranging from 48 to 100 LEDs per meter. Designed for professional installations, these strips come with a black PCB and black LED face colour, 4OZ copper for superior current handling, and a 4‑pin XLR4 male connector for secure, reliable signal and power connection.

Available in DC5V and DC12V versions, this series offers exceptional flexibility and performance for stage, architectural, and decorative lighting projects.

What Makes This SK6812 Series Unique?

Feature	Specification
LED Type	SMD5050 RGB (SK6812, individually addressable)
Density Options	48, 64, 90, 96, 100 LEDs/m
Voltage	DC5V / DC12V (selectable)
PCB Width	12mm
PCB Colour	Black (LED face also black)
Copper Thickness	4OZ
Connector	4‑pin XLR4 Male (locking, professional)
Pinout	1: +5V/12V, 2: BLANK, 3: Data, 4: GND
Lead Length	150mm from XLR to strip
Test Tails	None (clean installation)

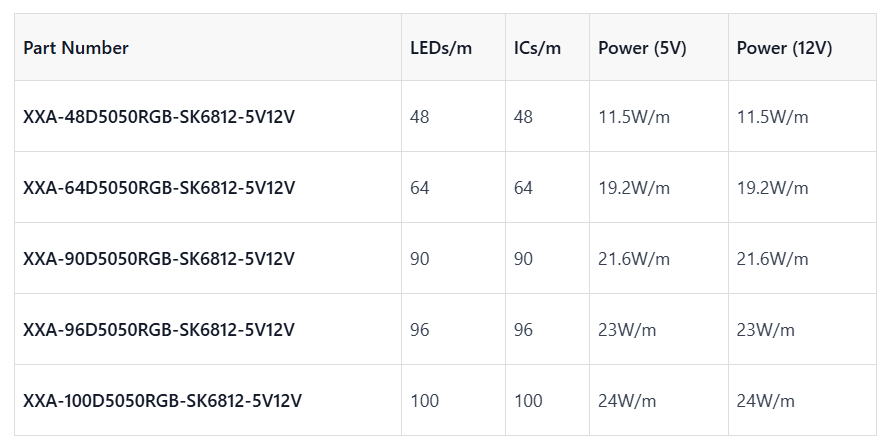

Model Comparison

Note: All models feature 1:1 LED‑to‑IC ratio for full individual pixel control.

Key Features

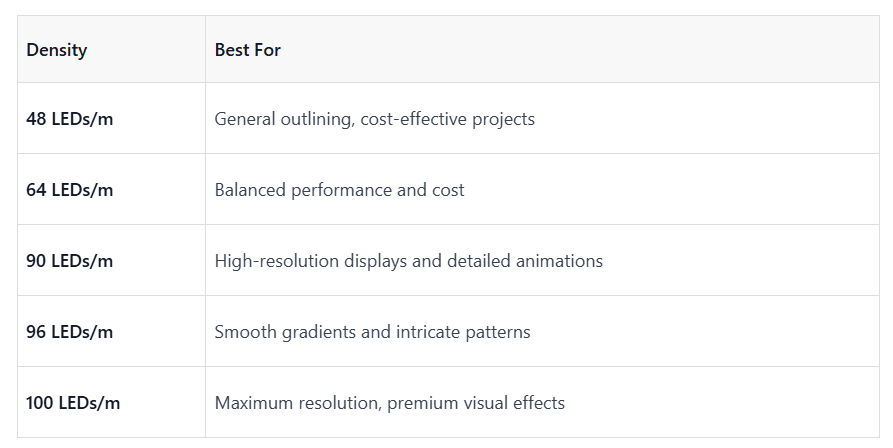

1. High‑Density Options – 48 to 100 LEDs/m

Choose the density that fits your resolution and budget requirements:

2. SK6812 – Individually Addressable Pixel Control

The SK6812 IC provides:

1:1 LED‑to‑IC ratio – each LED is individually controllable
256 grayscale levels per channel for smooth, professional colour transitions
Standard SPI protocol – compatible with a wide range of controllers (e.g., WLED, FastLED, Madrix, etc.)

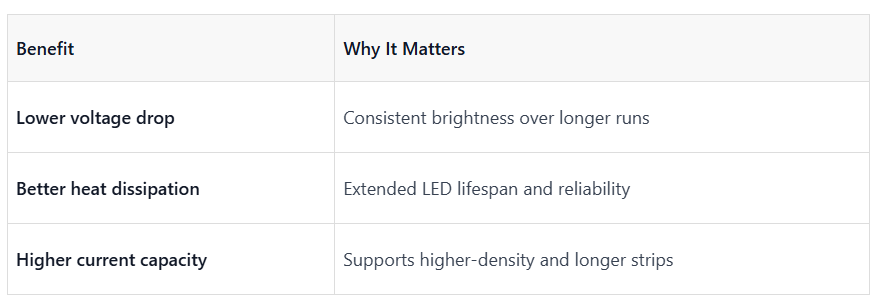

3. 4OZ Copper – Superior Current Handling

The 4OZ copper thickness offers several advantages over standard 2OZ PCBs:

4. Black PCB & Black LED Face – Sleek, Professional Look

The black PCB and black LED face colour create a discreet, high‑end appearance:

Blends into dark backgrounds – ideal for architectural installations where the strip should be less visible when off
Professional aesthetic – favoured by stage and event lighting designers

5. 4‑pin XLR4 Male Connector – Secure, Professional Connection

Unlike standard JST connectors, the XLR4 offers:

Locking mechanism – prevents accidental disconnection
Professional standard – widely used in stage and audio/lighting installations
Clear pinout – simple and reliable wiring

6. 150mm Lead Length – Flexible Installation

The 150mm lead from XLR to strip provides:

Easy connection in tight spaces
Flexibility in positioning the strip relative to the connector
Reduced strain on the strip and connector during installation

7. No Test Tails – Clean, Professional Finish

The absence of test tails means:

Less clutter – no dangling wires to manage
Cleaner installation – especially important for permanent or visible installations
Reduced failure points – fewer potential connection issues

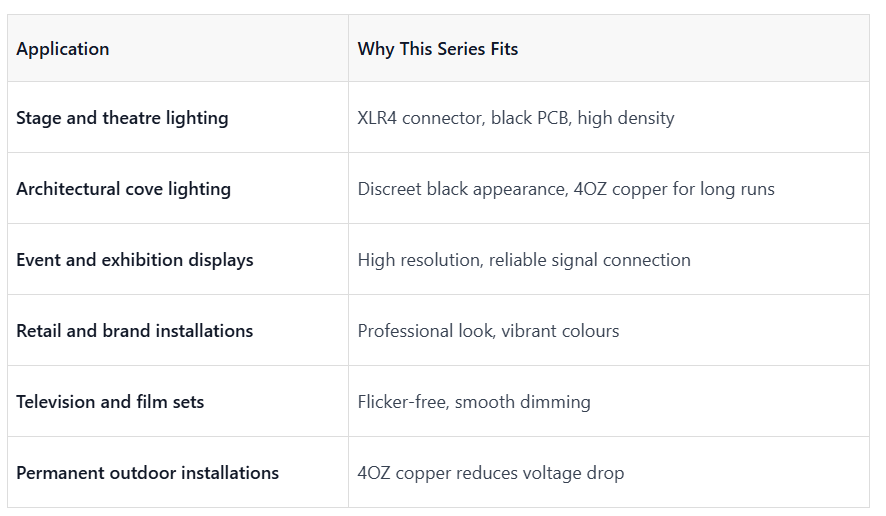

Applications

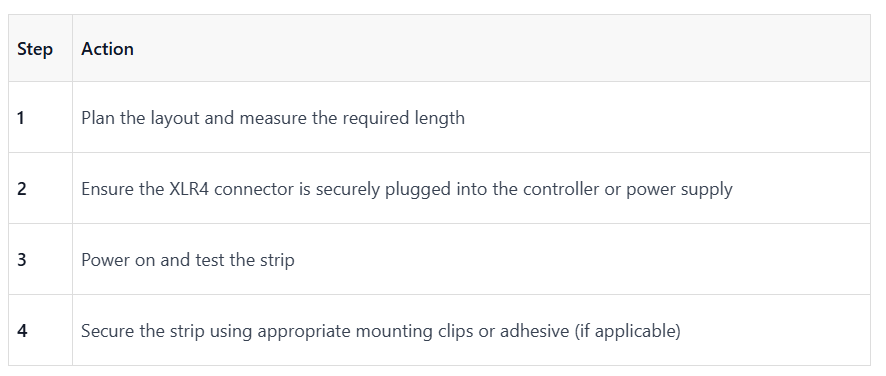

Installation Overview

Important: Due to the high density and power consumption (up to 24W/m), ensure your power supply can handle the total load and consider power injection for runs longer than 5 metres.

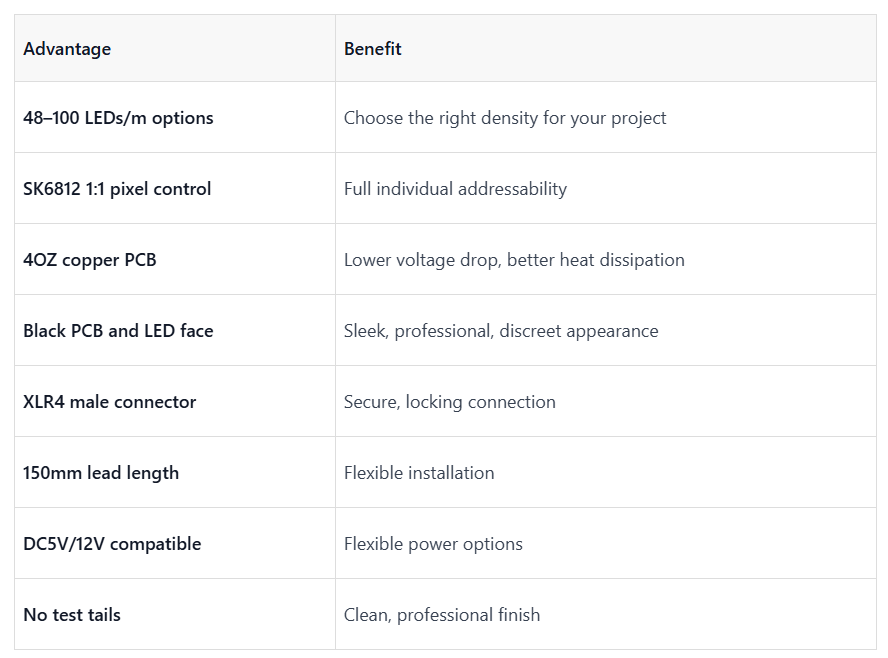

Summary

Availability

The new SK6812 Digital LED Strip Series (48–100 LEDs/m, 4OZ, black PCB, XLR4) is available for order now. Custom lengths and configurations are available upon request.

👉 Contact Us Today for samples, technical support, or a quote.
